Extensive
A light rooftop garden, without worries
An extensive rooftop garden is what is commonly called “green roof”. It represents a system for green coverings with low width (16 cm), low weight (101 kg/m2 maximum) and little maintenance needed.
Since roof garden is a choice with technical functions, it should be evaluated according to its cost-benefit ratio; nevertheless, its aesthetic function is not neglected, it is pursued through careful selection of self-healing canopy vegetation, consisting mainly of a mixture of Sedum varieties and herbaceous perennials.
Extensive
Simplicity and Resistance
Daku’s extensive gardens are ideal for rooftops with low accessibility, which need a simple system. It must be easy to maintain and capable of saving water. In these gardens, plants must me adaptable, resistant, able to regenerate and to reproduce themselves autonomously.
Daku’s extensive systems, thanks to the technology of their components, represent the ideal solution, combining efficiency and sustainability. Besides, they transform buildings into a part of the environment.
Extensive
Rooftop Protection and Thermal Insulation
Rooftop gardens reduce the thermal dispersion during the winter, but most of all the coverings’ temperature during the summer. This allows to highly reduce energetic costs of buildings, both inside and outside. For these reasons, our extensive systems are ideal for buildings with rooftops difficult to access.
Besides, our green rooftops protect the hydraulic and insulation components of the covering. They also guarantee a longer operative life, keeping them functional e maintaining the rooftop’s economic and ecological value.
Extensive
STANDARD
DAKU EXTENSIVE STANDARD this is the system, among those on the market, that guarantees the best compromise between weight, thickness and hydric autonomy. It has no irrigation mechanism, thus limiting the growth of noxious weed and reducing maintenance costs.
Technical features
| System width | cm approx. | 16,00 |
|---|---|---|
| Weight (maximum saturation) | kg/sqm | 101,00 |
| Water (total amount) | l/sqm | 38,50 |
| Air volume | l/sqm | 49,50 |

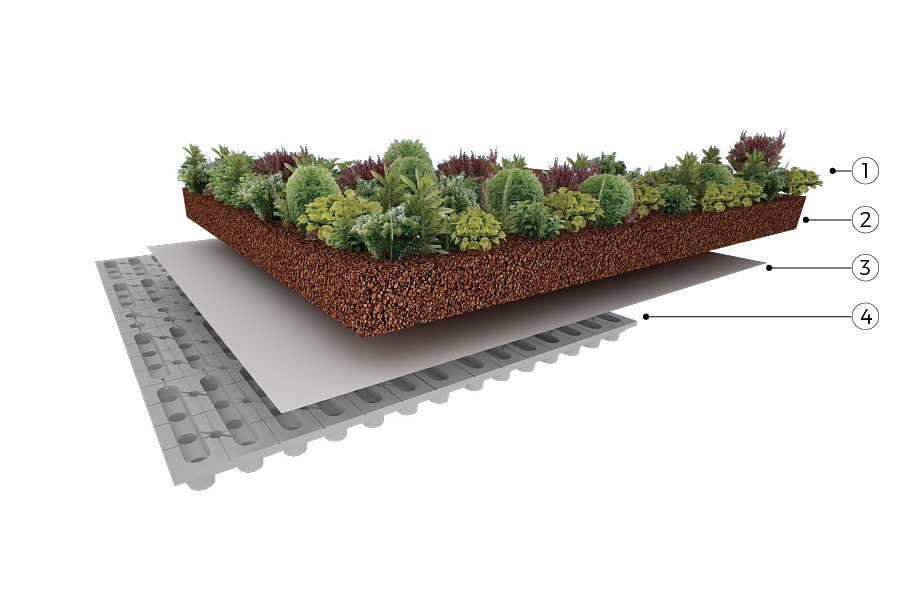

System components
- DAKU SEDUM Vegetation (Mixture of Sedum)
- DAKU ROOF SOIL 2 substrate, 8 cm thick
- DAKU STABILFILTER SFE Filter
- DAKU FSD 20 component for drainage and water storage
Extensive
PLUS
DAKU EXTENSIVE PLUS this system combines hydric efficiency with a more pleasant and refined aesthetic. Various plants species (for the most part local) are planted and mixed, enhancing the ecological value of the rooftop.
Technical features
| System width | cm approx. | 18,00 |
|---|---|---|
| Weight (maximum saturation) | kg/sqm | 123,00 |
| Water (total amount) | l/sqm | 45,00 |
| Air volume | l/sqm | 56,50 |
System components
- DAKU SEDUM (Mixture of Sedum) and perennial grasses
- DAKU ROOF SOIL 2 substrate, 10 cm thick
- DAKU STABILFILTER SFE Filter
- DAKU FSD 20 component for drainage and water storage
Extensive
PITCHED
DAKU EXTENSIVE PITCHED this system allows the installation of roof gardens on pitched rooftops or in those with complex geometrical shapes, maintaining the same characteristics and performances of a flat roof. The system can be installed in rooftops with a maximum sloping of 35°.
Technical features
| System width | cm approx. | 16,00 |
|---|---|---|
| Weight (maximum saturation) | kg/sqm | 103,00 |
| Water (total amount) | l/sqm | 38,50 |
| Air volume | l/sqm | 49,50 |
System components
- DAKU SEDUM Vegetation (Mixture of Sedum)
- DAKU ROOF SOIL 2 substrate, 8 cm thick
- DAKU GEO 75 retaining element
- DAKU GRID 4 cellular confinement grid
- DAKU STABILFILTER SFE Filter
- DAKU FSD 20 component for drainage and water storage
Extensive
IRRIGA
DAKU IRRIGA ESTENSIVO permette il completo assorbimento dell’acqua fornita alle radici, limitando al minimo le perdite per evaporazione e drenaggio profondo, con l’effetto di abbassare anche del 75% i volumi d’acqua utilizzati per la sussistenza della vegetazione. Fornendo l’acqua dal basso, le piante traspirano ed aiutano ad abbassare le temperature superficiali e favoriscono la diminuzione del fenomeno delle “isole di calore” per periodi più prolungati rispetto alle alternative sul mercato.
Technical features
| Spessore del sistema | cm. ca | 16,00 |
|---|---|---|
| Peso del sistema saturo | kg/mq | 115,00 |
| Numero di camini capillari | pz/mq | 8 |
| Acqua totale disponibile per la vegetazione | l/mq | 42,00 |
| Volume d'aria del sistema | l/mq | 44,00 |
Tutti i materiali ed i sistemi Daku sono conformi alla norma UNI 11235/15
* Il sistema descritto è la base del DAKU ESTENSIVO e consente la coltivazione del sedum
System components
- Vegetazione DAKU SEDUM
- Substrato DAKU ROOF SOIL 2 IRRIGA, spessore 8 cm (assestati)
- Filtro DAKU STABILFILTER SFE Irriga
- Camini capillari
- Sistema di irrigazione DAKU IRRIGA
- Pannello accumulo e drenaggio DAKU FSD Irriga
